Rig 200 - American Augers HDD Rig


This skid mounted directional drill is capable of creating 220,000 ft/lbs of push/pull and rotary torque of 35,000 ft/lbs. This rig set up comes complete with all standard equipment, including:


  • 250KW Generator, Doghouse and Toolhouse Combo Building. Featuring a fully equipped toolhouse as well as the operator and directional controls in a climate controlled environment.
  • Custom Built 50m3 Above Ground Mud-Tank and Fluid Processing System. Consisting of two Swaco shale shakers that are capable of processing up to 3.9m3 of fluid per minute.
  • 550HP F500 Emsco Triplex Mud Pump. This Emsco triplex mud pump is capable of pumping rates as high as 1.7m3 per minute.
  • Tri-Axle Trailer / Pipe Tub. This unit comes complete with a full complement of 5" diameter drill pipe (Min G Grade), monel mud-motor and other applicable tooling. This unit also houses the 5 tonne knuckle picker.
  • Engineered Custom Built 30m3 Underground Fluid Returns Tank. This unit also doubles as an anchor for the rig itself.
  • 80HP Boiler. Capable of providing enough steam to provide safe drilling conditions and heats all building on site.
  • Rig Manager Wellsite Shack. Fully equipped living quarters as well as onsite field office with internet communication capabilities to house the 24 hour on shift Rig Manager.
  • Industry Leading Directional Guidance System. Consists of the AC based Para-Track2TM for the utmost in locating confidence as well as annular pressure monitoring.
  • Pason Electronic Drilling Recorder. This measures and records all drilling activities including fluid volumes, push/pull pressures, rotary pressure and daily tour information.
  • Hands Free Hydraulic Powered Exit Tong System. Allows for the safe breaking of drill pipe upon exit.

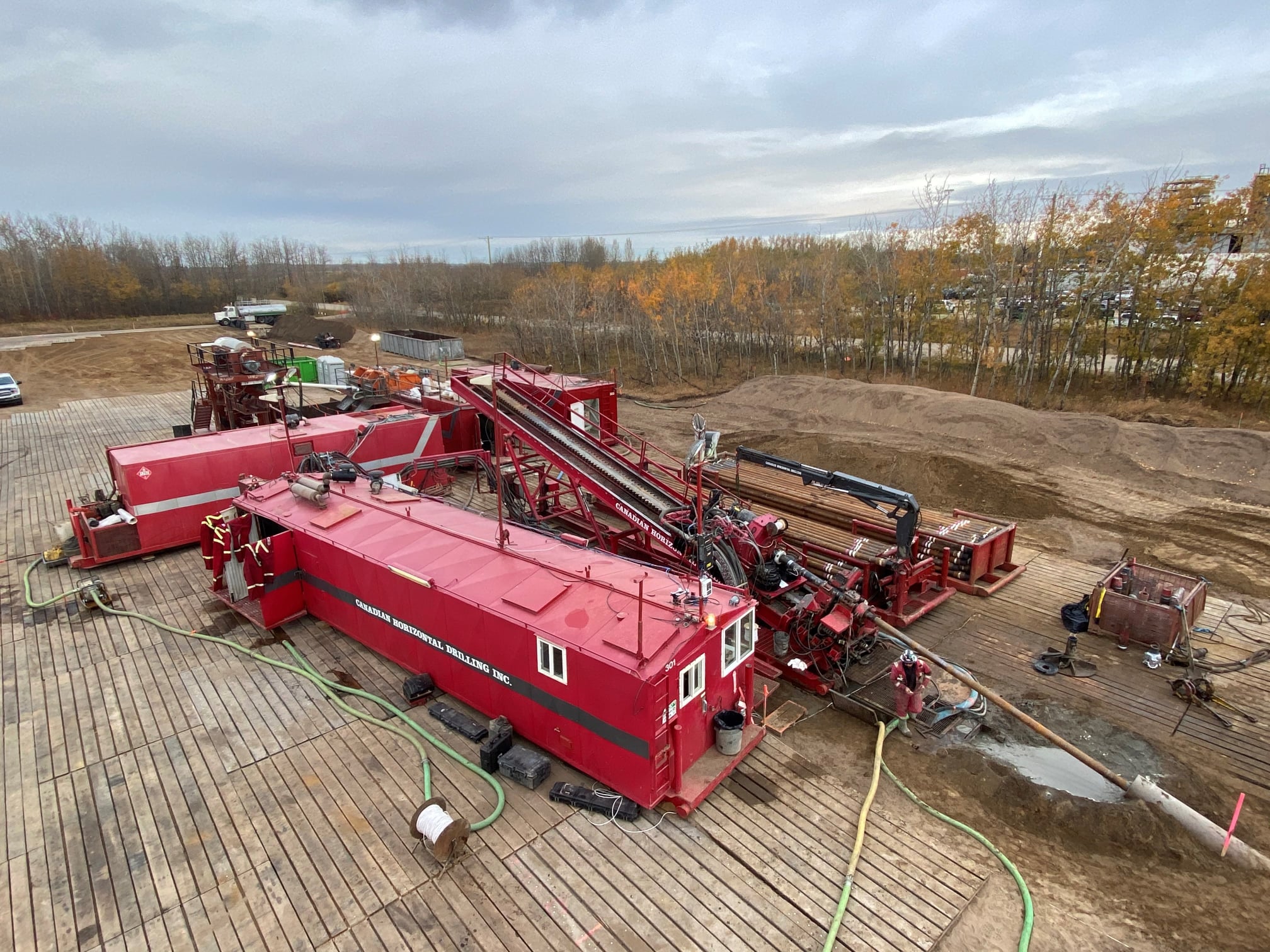

Rig 300 - Contractors Manufacturing CMS30030 HDD Rig


This highly specialized, skid mounted directional drill is capable of creating 440,000 ft/lbs of push/pull and rotary torque of 50,000 ft/lbs. This rig set up comes complete with all standard equipment, including:


  • Hydraulic Power Unit, Toolhouse and Doghouse Combo Building. This unit includes the dual pack "Series 60" Detroit Diesel engines for a combined horsepower rating of 1200HP, a fully equipped toolhouse, as well as the operator and directional controls in a climate controlled environment.
  • Custom Built 50m3 Above Ground Mud-Tank and Fluid Processing System. Consists of two Swaco shale shakers that are capable of processing up to 3.9m3 of fluid per minute.
  • 800HP F-800 Emsco Triplex Mud Pump. This emsco triplex pump is capable of pumping at rates as high as 2.1m3 per minute to ensure a clean hole.
  • Generator, Crew Change and Fuel Cell Combo Building. This building houses the 260 kWatt electrical generator as well as additional fuel storage.
  • Pipetub. This unit comes complete with a full complement of 5.5" diameter drill pipe (Min G Grade), monel, mud-motor and other applicable tooling. This unit also houses the 7 tonne knuckle picker.
  • Custom Built 36m3 Underground Fluid Returns Tank. This unit doubles as an anchor for the rig itself.
  • 80HP York Shipley Boiler. This boiler is capable of providing safe drilling conditions and heating all buildings on site.
  • Rig Manager Wellsite Shack. Fully equipped living quarters as well as onsite field office with internet communication capabilities to house the 24 hour on shift Rig Manager.
  • Industry Leading Directional Guidance System. Consists of the AC based Para-Track2TM for the utmost in locating confidence as well as annular pressure monitoring.
  • Pason Electronic Drilling Recorder. This measures and records all drilling activities including fluid volumes, push/pull pressures, rotary pressure and daily tour information.
  • Hands Free Hydraulic Powered Exit Tong System. Allows for the safe breaking of drill pipe upon exit.





Rig 400 - American Augers HDD Rig


This skid mounted directional drill is capable of creating 160,000 ft/lbs of push/pull and rotary torque of 30,000 ft/lbs. This rig setup comes complete with all standard equipment, including:


  • 500HP F-500 Emsco triplex mud pump. The Emsco triplex mud pump is capable of pumping at rates as high as 2.1m3/minute and housed in a common building with the 36m3 mud tank and a 4 bed mongoose shaker.
  • 200KW Generator, toolhouse and doghouse combo building. This unit includes a fully equipped toolhouse, fuel cell as well as the operator and directional controls in a climate controlled environment.
  • Tri-Axle Trailer / Pipe Tub. This unit comes complete with a full complement of 5” diameter drill pipe (Min G Grade), monel, mud-motor and other applicable tooling. This unit also houses the 5 tonne knuckle picker.
  • Custom Built 30m3 Underground Fluid Returns Tank. This unit doubles as an anchor for the rig itself.
  • 60HP Volcano Boiler. This boiler is capable of providing safe drilling conditions and heating all buildings on site.
  • Rig Manager Wellsite Shack. Fully equipped living quarters as well as onsite field office with internet communication capabilities to house the 24 hour on shift Rig Manager.
  • Change Shack / Crew Lounge Area. This building is a climate control building for the use of the on-site employees. Especially useful in the cold weather, this building is designed for clothes drying and break time comfort.
  • Industry Leading Directional Guidance System. Consists of the AC based Para-Track2TM for the utmost in locating confidence as well as annular pressure monitoring.
  • Pason Electronic Drilling Recorder. This measures and records all drilling activities including fluid volumes, push/pull pressures, rotary pressure and daily tour information.
  • Hands Free Hydraulic Powered Exit Tong System. Allows for the safe breaking of drill pipe upon exit.

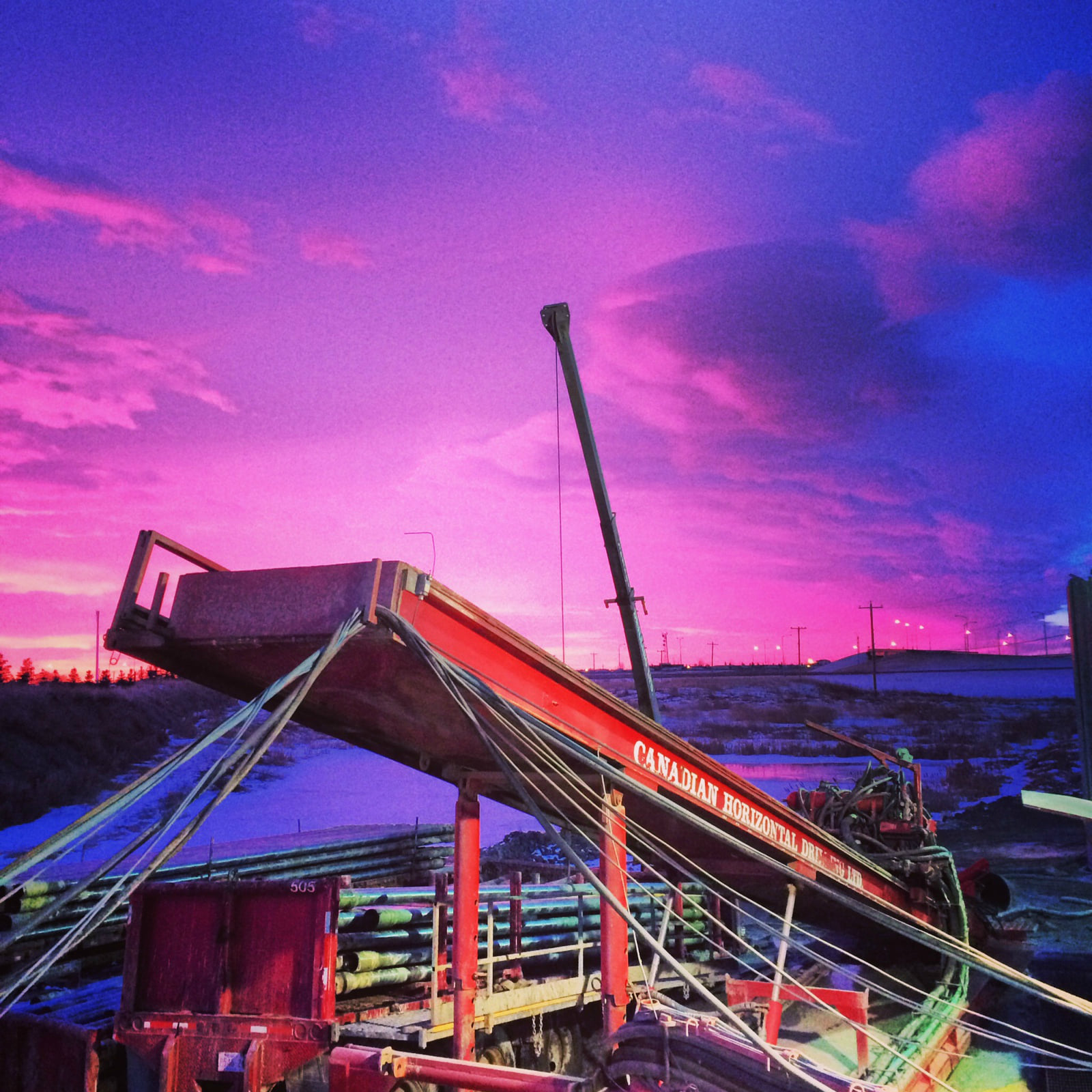

Rig 500 - Contractors Manufacturing CMS50050 HDD Rig


This highly specialized, skid mounted directional drill is capable of creating 550,000 ft/lbs of push/pull and rotary torque of 60,000 ft/lbs. This rig setup comes complete with all standard equipment, including:


  • Hydraulic Power Unit, Toolhouse and Doghouse Combo Building. This unit includes the dual power pack “Series 60” Detroit Diesel engines for a combined horsepower rating of 1200HP, a fully equipped toolhouse, as well as the operator and directional controls all in a climate-controlled environment.
  • Custom Built 48m3 Above Ground Mud-Tank and Fluid Processing System. Consists of two, 4 bed mongoose shale shakers that are capable of processing up to 4m3 of fluid per minute.
  • 600HP F-800 Emsco Triplex Mud Pump. This Emsco triplex pump is capable of pumping at rates as high as 2.5m3/minute to ensure a clean hole.
  • Generator, Crew Change / Break House and Fuel Cell Combination Building. This building houses the 260 KWatt electrical generator as well as additional fuel storage.
  • Tri-Axle Trailer / Pipe-Tub. This unit comes complete with a full complement of 5.5 inch diameter drill pipe (minimum G grade), monel, mud-motor and other applicable tooling. This unit also houses the 8 tonne picker.
  • Custom Built 36m3 Underground Fluid Returns Tank. This unit doubles as an anchor for the rig itself.
  • Rig Manager Wellsite Shack. Fully equipped living quarters as well as onsite field office with internet communication capabilities to house the 24 hour on shift Rig Manager.
  • Change Shack / Crew Lounge Area. This building is a climate control building for the use of the on-site employees. Especially useful in the cold weather, this building is designed for clothes drying and break time comfort.
  • Industry Leading Directional Guidance System. Consists of the AC based Para-Track2TM for the utmost in locating confidence as well as annular pressure monitoring.
  • Pason Electronic Drilling Recorder. This measures and records all drilling activities including fluid volumes, push/pull pressures, rotary pressure and daily tour information.
  • Hands Free Hydraulic Powered Exit Tong System. Allows for the safe breaking of drill pipe upon exit.



Each of the above rigs also include:


  • A Lynx V400 Centrifuge
  • A 400 BBL Fresh Water Tank
  • A 20m3, Four Sided Shale Bin for Drill Cutting
  • Four 4X4 pick up trucks for use of the Rig Manager, Crew and Directional Hands



Other Equipment

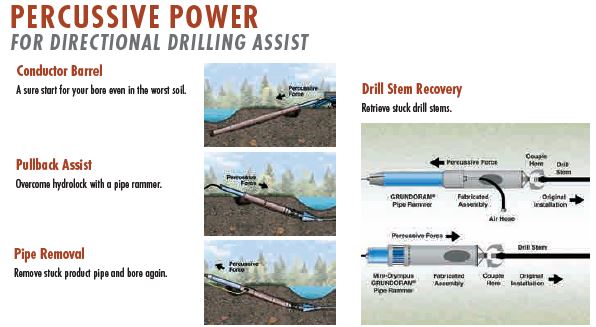

18 Inch Goliath Hammer


This pneumatic pipe ramming system is capable of casing installations from 24 inches to 56 inches in diameter.

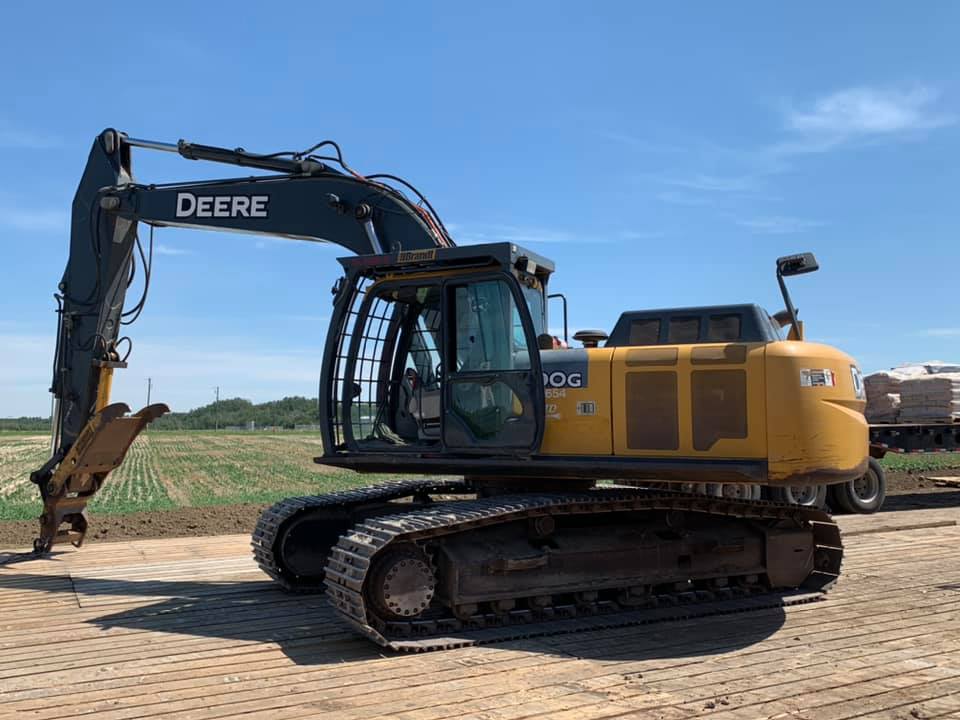

Two 290G John Deere Excavators
